The design was to be prepared in accordance with AS 1210-2010 Pressure vessels
Scope Of Work
2x designs to conform with AS 1210-2010 Pressure vessels.
- Service: Natural Gas
- Design Pressure: 9,900 kPa
- Design Temperature: -22 to 80°C
- Material: Coated Carbon Steel
- Verification in accordance with AS 3920 Pressure equipment – Conformity assessment
- Arrangement as per Owner’s drawings with davits rotated by 180°.
Project Challenges
- Design to exacting dimensional requirements based on survey results from as-constructed piping
- Preparation of design that provided adequate leeway in tolerances to meet field requirements but still provided certainty with respect to safety and conformity with design standards.
How We Managed This
- User requirement specification (URS or vessel data sheet)
- 3D CAD model for review in DWFX format
- Design report
- Engineering drawings
- Design verification certificate
- Submission of WorkSafe WA Application form 200.
Value Engineering

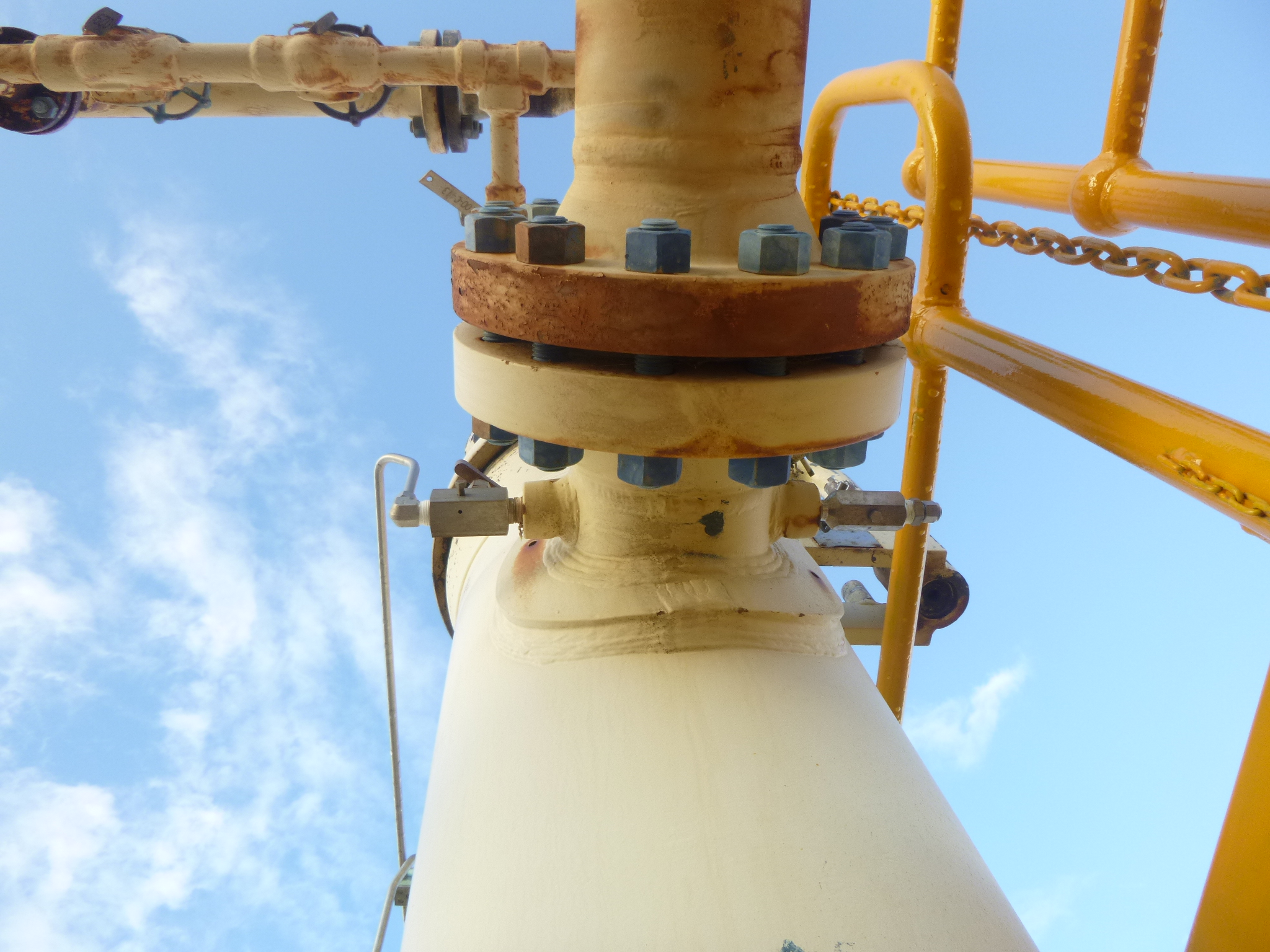

The vessels were replacements for existing units and the piping had been site-run so simple like-for-like replacement would have been problematic. Nozzles and piping were precisely surveyed and the design prepared to exacting dimensional requirements that ensured a contingency-free change over.
